When it comes to powering your devices or systems, understanding how to connect batteries in parallel can be a game-changer. Whether you're looking to increase your battery capacity or enhance reliability, parallel connections offer a straightforward solution. By linking batteries in parallel, you combine their capacities while maintaining a consistent voltage, making it ideal for applications requiring extended runtime or backup power. This method is not only cost-effective but also easy to implement, even for beginners. (Batteries in Parallel, Battery Capacity, Battery Reliability)
What Does It Mean to Connect Batteries in Parallel?

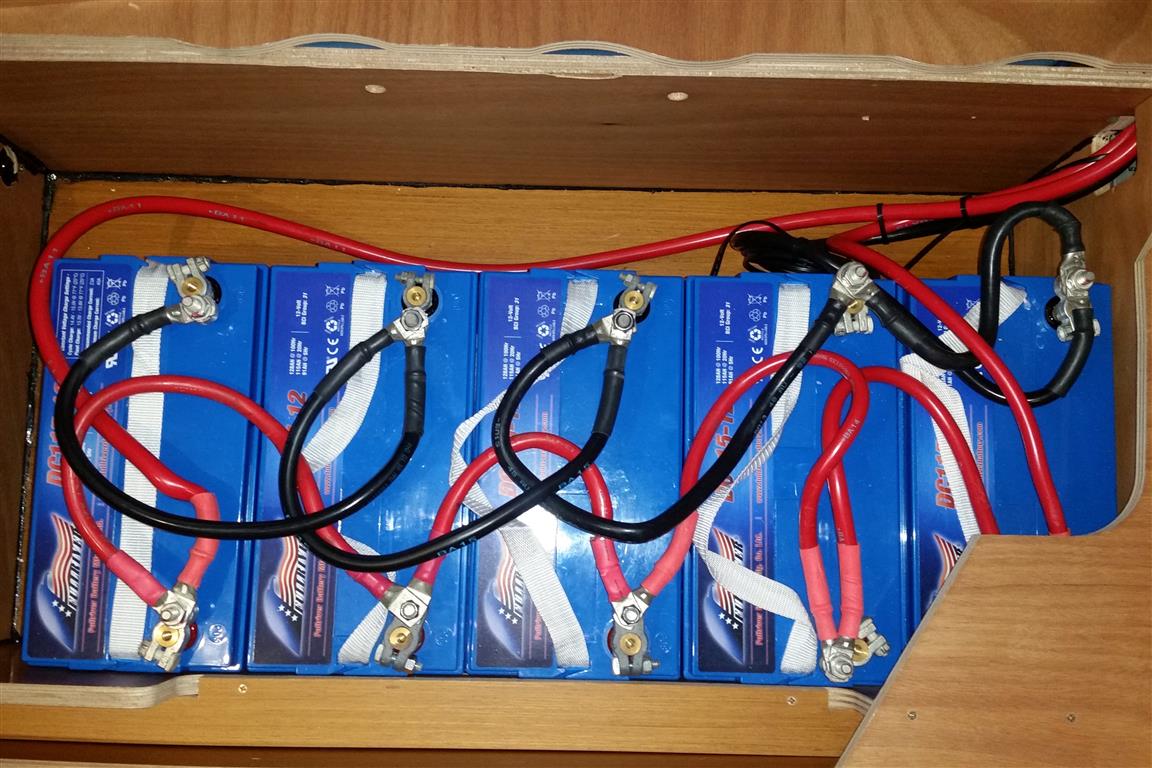

Connecting batteries in parallel involves linking the positive terminals of two or more batteries together and doing the same for the negative terminals. This configuration ensures that the voltage remains the same as a single battery, while the total capacity (ampere-hours, Ah) is the sum of all connected batteries. For example, two 12V, 100Ah batteries in parallel will still provide 12V but with a combined capacity of 200Ah. (Parallel Battery Connection, Battery Voltage, Battery Capacity)
Benefits of Batteries in Parallel
Increased Capacity
One of the primary advantages of parallel connections is the ability to boost total capacity. This is particularly useful for applications like solar power systems, RVs, or emergency backup systems where longer runtimes are essential. (Battery Capacity, Solar Power Systems, Backup Power)
Enhanced Reliability
By using multiple batteries, you reduce the strain on individual units, which can extend their lifespan. Additionally, if one battery fails, the others can continue to provide power, ensuring uninterrupted operation. (Battery Reliability, Battery Lifespan, Uninterrupted Power)
How to Connect Batteries in Parallel
Follow these steps to safely connect batteries in parallel:
- Step 1: Ensure all batteries are of the same voltage and type (e.g., all 12V lead-acid batteries).
- Step 2: Turn off any devices connected to the batteries to prevent electrical hazards.
- Step 3: Use appropriately sized cables to connect the positive terminals of all batteries together.
- Step 4: Repeat the process for the negative terminals.
- Step 5: Double-check all connections for tightness and accuracy before powering on. (Battery Connection, Safety Precautions, Battery Cables)
⚠️ Note: Always use batteries of the same type and capacity to avoid imbalances that could damage the batteries or reduce efficiency.
Important Considerations
Battery Matching
For optimal performance, ensure all batteries are of the same brand, age, and capacity. Mismatched batteries can lead to uneven charging and discharging, reducing overall efficiency. (Battery Matching, Battery Efficiency, Battery Performance)
Monitoring and Maintenance
Regularly monitor the batteries for signs of wear or imbalance. Use a battery management system (BMS) if available to ensure all batteries charge and discharge evenly. (Battery Monitoring, Battery Maintenance, Battery Management System)
| Parameter | Parallel Connection | Series Connection |
|---|---|---|
| Voltage | Remains the same | Increases |
| Capacity | Increases | Remains the same |
| Best For | Extended runtime | Higher voltage applications |
Checklist: Connecting Batteries in Parallel
- Verify all batteries are the same voltage and type.
- Turn off connected devices before starting.
- Use proper gauge cables for connections.
- Double-check all connections for tightness.
- Monitor batteries regularly for performance. (Battery Checklist, Safety Checklist, Battery Connection)
Connecting batteries in parallel is a simple yet effective way to increase capacity and reliability for your power needs. By following the steps and considerations outlined above, you can ensure a safe and efficient setup. Whether for home, RV, or industrial use, this method provides a scalable solution to meet your energy demands. (Batteries in Parallel, Battery Capacity, Battery Reliability)
Can I mix different battery brands in parallel?
+
It’s not recommended to mix different battery brands or types in parallel, as it can lead to uneven charging and reduce efficiency. Always use batteries of the same brand, age, and capacity for best results. (Battery Brands, Battery Efficiency)
How many batteries can I connect in parallel?
+
You can connect as many batteries as needed in parallel, but ensure your system can handle the increased current. Use appropriate cables and a battery management system (BMS) for larger setups. (Battery Connections, Battery Management System)
Do parallel-connected batteries charge evenly?
+
Parallel-connected batteries should charge evenly if they are matched properly. However, using a BMS can help ensure balanced charging and prolong battery life. (Battery Charging, Battery Lifespan)
